Decomposition#

  • There are various regimes for signal decomposition.

  • Examples:

    • Fast Fourier Transform (FFT)

    • Wavelets

    • Linear components

  • Motviation:

    • Trend discovery

    • Low-pass/high-pass filter

    • Exploratory data analysis

Fast Fourier Transform#

FFT history and application#

  • An important workhorse in signal processing.

  • Can be traced back to Carl Friedrich Gauss on Discrete Fourier Transforms from 1805.

  • Major milestone in 1965 by James Cooley and John Tukey regarding speed of computations and applications in detecting Soviet nuclear bomb tests.

  • Used in anything from mathematical speed-ups, via video and music compression, modern signal processing in Wi-Fi, 5G, etc. to finance.

FFT function#

  • Wikipedia: A Fourier Transform is a transform that converts a function into a form that describes the frequencies present in the original function.

  • scipy.fft: Fourier analysis is a method for expressing a function as a sum of periodic components, and for recovering the signal from those components.

\[X_k = \sum_{n=0}^{N-1} x_n e^{i2 \pi kn/N} ~~~~ k = 0, ..., N-1\]
  • Here, k is the index of a signal, X, and N is its length. \(x_n\) is a coefficient to be fitted.

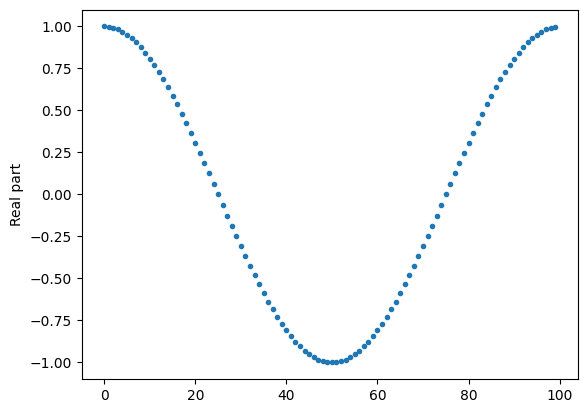

import numpy as np
import matplotlib.pyplot as plt
N = 100
n = 1
x = [np.exp(1j * 2 * np.pi * k * n / N) for k in range(N)]
plt.plot(range(N), np.real(x), '.')
plt.ylabel('Real part')
plt.show()
../../_images/3d2a5d5fa6d96a0cc29cdfa2d9cff22bce4d2b6b47e65a1b3300cb39c3da5941.png
# The full complex exponential basis
plt.plot(np.real(x), np.imag(x), '.')
plt.axis('square')
plt.grid()
plt.xlabel('Real')
plt.ylabel('Imaginary')
plt.title('DFT Basis')
plt.show()
../../_images/7baaa318190ce076cf5afb36f2c324a3898d9a0cabd7f44db5592c26c530e85e.png

Direct Cosine Transform (DCT)#

  • FFT with real valued data.

  • For real numbered signals, the definition above can be exchanged with a version based on the cosine or sine functions.

  • There are theoretically 8+8 “types”, 4+4 of which are implemented in SciPy, and various choices for normalisation.

  • Type I DCT (Direct Cosine Transform) as implemented in SciPy:

\[y_k = x_0 + (-1)^k x_{N-1} + 2 \sum_{n=1}^{N-2} x_n cos (\frac{\pi k n}{N-1}))\]
  • \(y_k\) is the \(k\)-th part of the signal, \(N\) is the length, \(x_n\) is the \(n\)-th coefficient.

  • Coefficient signs indicate flip of the base cosines, magnitudes indicate scaling.

  • n indicates the number of half cosine cycles, i.e., even n means full cycles (see plot below), maximum frequency of n/2.

  • Quicker than FFT and guarantees real valued frequency domain.

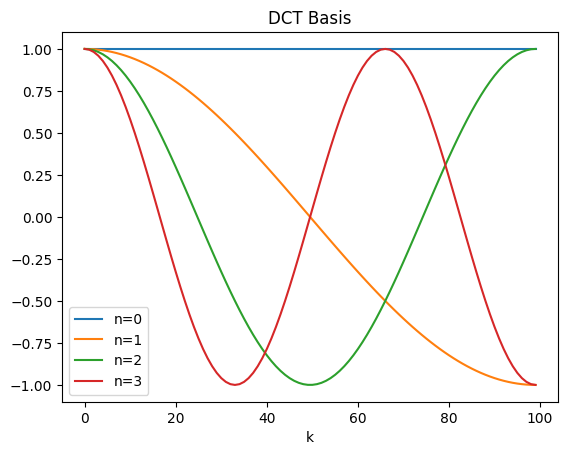

N = 100
n = 3
for k in range(0,n+1):
    plt.plot(np.cos(np.pi*k*np.arange(N)/(N-1)), label='n='+str(k))
plt.title('DCT Basis')
plt.xlabel('k')
plt.legend()
plt.show()
../../_images/5716c854a4fbe7a0b1a161ec30a948bf0496defa71be095bc957752480608f1c.png

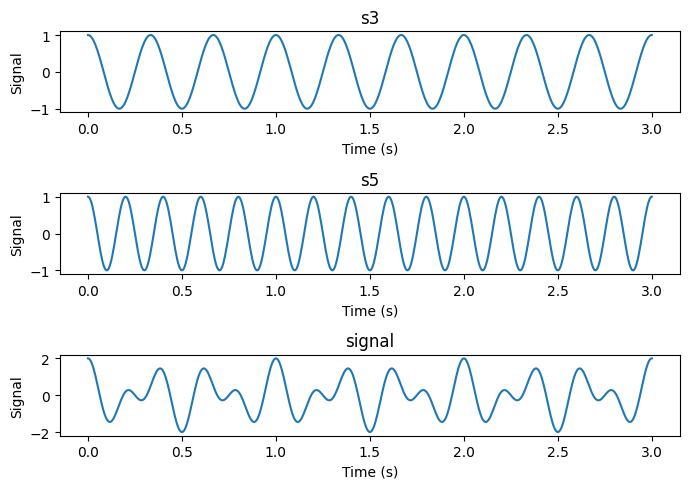

# Sum of two cosines with different frequencies.
import numpy as np
from scipy.fft import dct, idct

N = 601
s = 3
time = np.linspace(0,s,N)
s3 = np.cos(3 * 2*np.pi * time)
s5 = np.cos(5 * 2*np.pi * time)
signal = s3 + s5

# Make three suplots above each other with s3, s5 and signal
fig, axs = plt.subplots(3, 1, figsize=(7, 5))
axs[0].plot(time, s3)
axs[0].set_title('s3')
axs[1].plot(time, s5)
axs[1].set_title('s5')
axs[2].plot(time, signal)
axs[2].set_title('signal')
for ax in axs.flat:
    ax.set(xlabel='Time (s)', ylabel='Signal')
plt.tight_layout()
plt.show()

# Print the resolution of the time axis in Hz
dt = time[1] - time[0]
print('Sampling of the time axis:', 1/dt, 'Hz')
../../_images/170229c9daaecbe1b7e06aefda96e25060847705bf8b962e6f224b28e4a8cc2b.png
Sampling of the time axis: 200.0 Hz

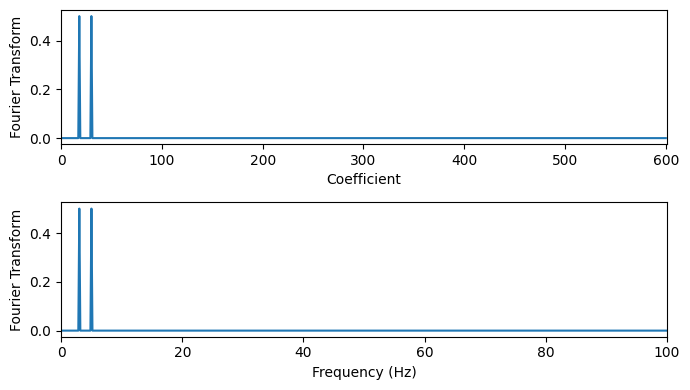

# Discrete Cosine transform
shift = 0 # Shift the signal to the right by this amount, e.g., 100
fourier_signal = dct(np.concatenate([np.zeros(shift),signal]), type=1, norm="forward") # Pad with zeros to shift signal
dt = time[1] - time[0]
W = np.linspace(0, 1/(2*dt), N+shift)
#                    ^-- Frequency axis in Hz (2* because of of definitions of DCT with half integers)

# Plot the Fourier transform
fig, axs = plt.subplots(2, 1, figsize=(7, 4))
axs[0].plot(range(N+shift), fourier_signal)
axs[0].set_xlabel('Coefficient')
axs[0].set_ylabel('Fourier Transform')
axs[0].set_xlim(0, N+shift)
axs[1].plot(W, fourier_signal)
axs[1].set_xlabel('Frequency (Hz)')
axs[1].set_ylabel('Fourier Transform')
axs[1].set_xlim(0, np.max(W))
plt.tight_layout()
plt.show()
../../_images/adc2ce07951b5584ab797720d10e17b8afa32e8c3218f6570cd24540389dd9b7.png

FFT filtering#

  • We can apply the FFT to analyse the frequencies present or to filter the signal.

    • Filtering here means that some frequencies are removed from the signal.

  • Typical filters are:

    • Low-pass filter: Remove high frequencies, e.g., noise or short-term changes, focusing on trends or slowly changing signals.

    • High-pass filter: Remove low frequencies, e.g., trends or baselines, focusing on rapid changes or anomalies.

plt.plot(W)
plt.show()
../../_images/bbb49399272ab9458ad89c3611062963031bf893e536986f21905a61c1f11c1f.png

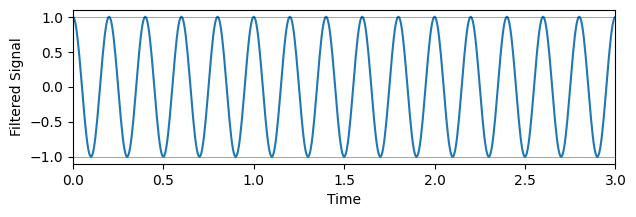

# Remove frequencies below 4, i.e., a high-pass filter
filtered_fourier_signal = fourier_signal.copy()
filtered_fourier_signal[(W<4)] = 0 # <- Come playe with me!
cut_signal = idct(filtered_fourier_signal, type=1, norm="forward")

# Plot the filtered signal
plt.figure(figsize=(7,2))
plt.plot(time, cut_signal)
plt.xlabel('Time')
plt.ylabel('Filtered Signal')
plt.xlim(0,s)
plt.axhline(-1, color='k', alpha=0.5, linewidth=0.5) # Shows the inexactness of the reconstruction
plt.axhline(1, color='k', alpha=0.5, linewidth=0.5)
plt.show()
../../_images/331d61ff2cf3976f0ad421a80826a12f75015565ad3e36e5d8ce1018512d372c.png

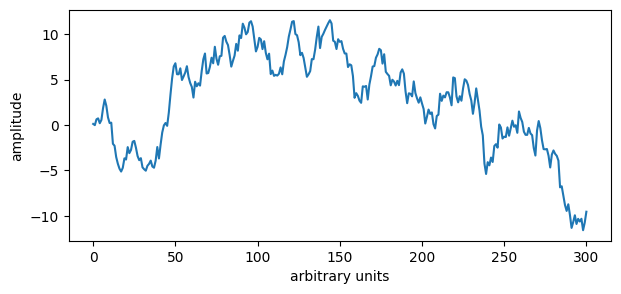

# A curve we have seen before
N = 301
rng = np.random.default_rng(0)
y = rng.standard_normal(N).cumsum()

# Plot the curve
plt.figure(figsize=(7,3))
plt.plot(y)
plt.xlabel('arbitrary units')
plt.ylabel('amplitude')
plt.show()
../../_images/c80f1ad046bfc685bac45d18172ae242ef8a0f0412bba25f2ca592b7e35ba9f8.png

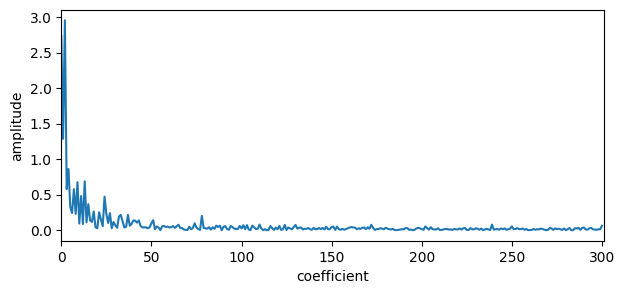

# Plot the Fourier transform
plt.figure(figsize=(7,3))
plt.plot(np.abs(dct(y, type=1, norm="forward"))) # Not caring about the signs
#plt.plot(dct(y, type=1)) # Caring about the signs
plt.xlabel('coefficient')  # Think 1/width of time series
plt.ylabel('amplitude')
plt.xlim(0,N)
plt.show()
../../_images/1a91e3f1ff9cd85b3a9042ae0dfa8eee8b9da4be56cd3e340d7c89b8d620793f.png

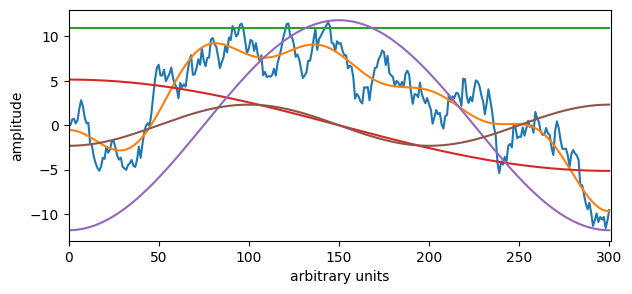

Overlay cosines on signal#

# Remove frequencies above 50, i.e., a low-pass filter.
W = np.arange(0, N) # Frequency axis
filtered_fourier_signal = dct(y, type=1, norm="forward")
x = filtered_fourier_signal.copy()
filtered_fourier_signal[(W > 10)] = 0
cut_signal = idct(filtered_fourier_signal, type=1, norm="forward")
add_cosines = 3 # <- Change me! Non-negative number adds cosines to the filtered signal

# Plot the filtered signal
plt.figure(figsize=(7,3))
plt.plot(y)
plt.plot(cut_signal)
plt.xlabel('arbitrary units')
plt.ylabel('amplitude')
plt.xlim(0,N)
if add_cosines > -1:
    for k in range(0,add_cosines+1):
        plt.plot(2 * x[k] * np.cos(np.pi*k*np.arange(N)/(N-1)) * 2) # Scaled up by 2 to fit in plot
plt.show()
#print('Sum of original signal: {:.2f}'.format(np.sum(y)))
#print('0th DCT coefficient / 2: {:.2f}'.format(filtered_fourier_signal[0]/2)) # Only holds for type 2 DCT with norm="backward"
../../_images/beedd67f331a464dad909da662a93e0a517dbf3e4de6af761ffe8b1b575d4749.png
\[y_k = x_0 + (-1)^k x_{N-1} + 2 \sum_{n=1}^{N-2} x_n cos (\frac{\pi k n}{N-1}))\]

Linear decomposition#

  • Various forms of linear models can be used for decomposition, each having different focus or optimality criteria, e.g.:

Seasonal-Trend decomposition using LOESS (STL)#

  • STL takes a (time) series as input together with an estimate of period length.

  • Output are:

    • A trend along the series (T).

    • A seasonal signal which may evolve along the series (S).

    • A residual ®.

    • Additive: X = T + S + R

    • (Multiplicative: X = T * S * R)

  • Additional parameters:

    • Length of smoothers for trend and season (high number = less change).

    • Use weighting of samples for robustness (allow more individual deviation from trend/season).

Fitting:

  • Typically STL is fitted one component at a time.

    • Smooth the series to estimate the trend,
      \(T = f_{smooth,T}(X)\).

    • Subtract the trend from the series,
      \(X_{S+R} = X - T\).

    • Average across seasons with sliding window (LOESS) to estimate the season,
      \(S = f_{smooth,S}(X_{S+R})\).

    • Subtract the trend and season from the signal to estimate the residual,
      \(R = X - T - S\)

# Monthly sunspots from https://github.com/jbrownlee/Datasets

# Load the data
import pandas as pd
sunspots = pd.read_csv("../../data/monthly-sunspots.csv", header=0)
print(sunspots.shape)
sunspots.head()
(2820, 2)
Month Sunspots
0 1749-01 58.0
1 1749-02 62.6
2 1749-03 70.0
3 1749-04 55.7
4 1749-05 85.0

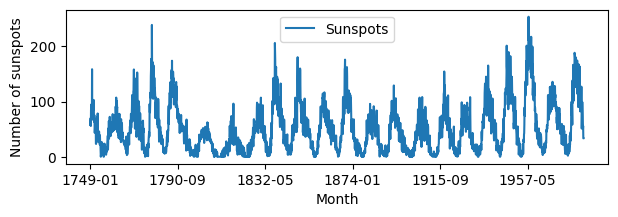

# Plot the data
sunspots.plot.line(x='Month', y='Sunspots', figsize=(7,2))
plt.xlabel('Month')
plt.ylabel('Number of sunspots')
plt.show()
../../_images/699a5c06dec2ad47b3ae07fc2bc2c2bdb85ba62844a055d764aa07a71da5585e.png
# Approximate periodicity: Lenght of series divided by number of periods.
# For sunspots we know that there is a periodicity of approximately 11 years.
np.round(2820/21)
np.float64(134.0)
from statsmodels.tsa.seasonal import STL
stl = STL(sunspots["Sunspots"], period=134)#, robust=True, seasonal=141, trend=141)
res = stl.fit() # Contains the components and a plot function
fig = res.plot()
../../_images/811cd095dabb75594fbd7fd5d302fc001e19f7d26448f36cc14bfebf70af36db.png
# Daily Female Births in California from https://github.com/jbrownlee/Datasets

# Load the data
births = pd.read_csv("../../data/daily-total-female-births.csv", header=0)
births.head()
Date Births
0 1959-01-01 35
1 1959-01-02 32
2 1959-01-03 30
3 1959-01-04 31
4 1959-01-05 44

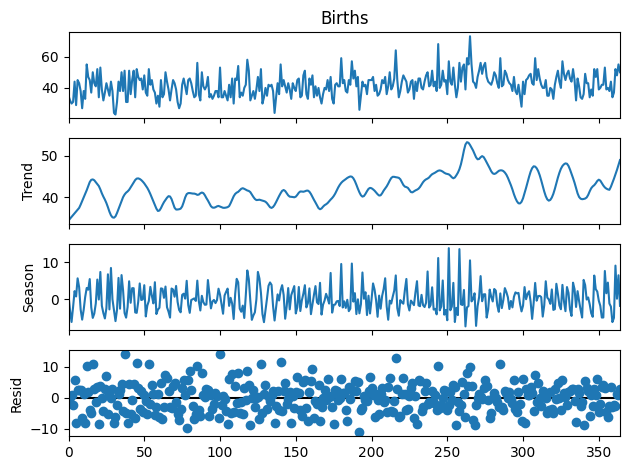

stl = STL(births["Births"], period=7)
res = stl.fit()
fig = res.plot()
../../_images/f8281da34bba5996bc4d70ff5f86fa4aa6826d8263c16f293550f737b7258a02.png

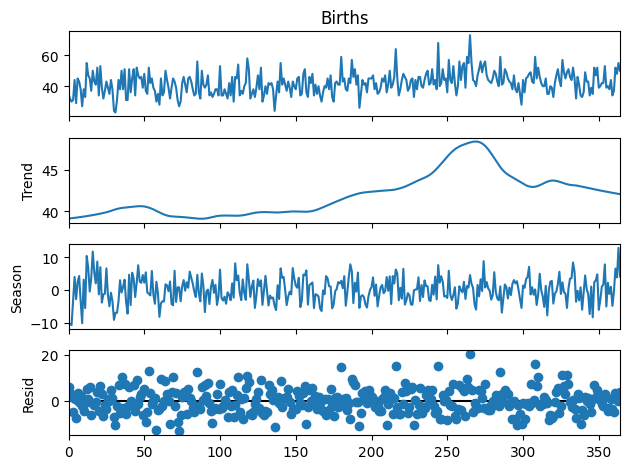

Excercise#

  • Force the period to change less.

  • Extract the trend and plot it as a function of time.

  • Indicate the date of maximum number of conceptions (~9 months before birth), assuming the year is cyclic.

Multiple seasonalities#

  • If a there is more than one phenomenon with a cyclic behaviour, multiple seasonalities can be found through Multiple Seasonal-Trend decomposition using LOESS (MSTL).

  • The more complex model one applies, the higher the chances of overfitting!

  • Example at statsmodels.org

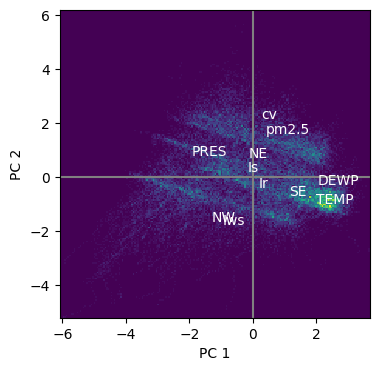

Principal Component Analysis (PCA)#

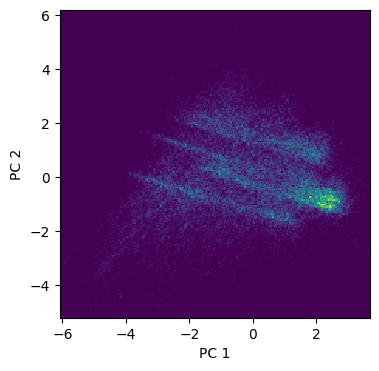

  • For (time) series with multiple variables, PCA can give a first indication of structure and connection between variables.

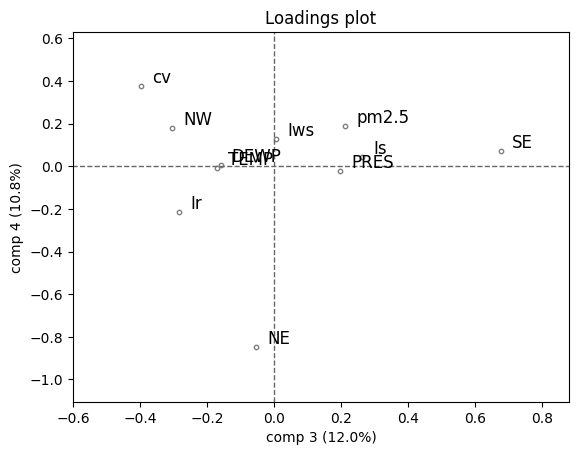

  • Scores show paths of time points, loadings show how variables relate.

  • One PCA formulation for input data \(\mathbf{X}\) with series as columns:

\[\mathbf{U} \mathbf{S} \mathbf{V}' = svd(\mathbf{X}-\bar{\mathbf{X}})\]
\[\mathbf{T} = \mathbf{U} \mathbf{S} \text{ - scores}\]
\[\mathbf{P} = \mathbf{V}' \text{ - loadings}\]

Beijing pollution data#

This dataset is originally from UCI Machine Learning Repository and shows hourly measurements of weather at the US embassy in Bejing. Its columns are:

  1. No: row number

  2. year: year of data in this row

  3. month: month of data in this row

  4. day: day of data in this row

  5. hour: hour of data in this row

  6. pm2.5: PM2.5 concentration (\(\mu g/m^3\))

  7. DEWP: Dew Point (\(^{\circ}F\))

  8. TEMP: Temperature (\(^{\circ}F\))

  9. PRES: Pressure (hPa)

  10. cbwd: Combined wind direction

  11. Iws: Cumulated wind speed

  12. Is: Cumulated hours of snow

  13. Ir: Cumulated hours of rain

# Beijing pollution data from https://github.com/jbrownlee/Datasets

# Load the data
pollution = pd.read_csv("../../data/pollution.csv", header=0, index_col=0)
print(pollution.shape)
pollution.head()
(43824, 12)
year month day hour pm2.5 DEWP TEMP PRES cbwd Iws Is Ir
No
1 2010 1 1 0 NaN -21 -11.0 1021.0 NW 1.79 0 0
2 2010 1 1 1 NaN -21 -12.0 1020.0 NW 4.92 0 0
3 2010 1 1 2 NaN -21 -11.0 1019.0 NW 6.71 0 0
4 2010 1 1 3 NaN -21 -14.0 1019.0 NW 9.84 0 0
5 2010 1 1 4 NaN -20 -12.0 1018.0 NW 12.97 0 0
# Recode the cbwd column using one-hot encoding and add to the data frame
pollution = pd.concat([pollution, pd.get_dummies(pollution["cbwd"], dtype=float)], axis=1)
pollution = pollution.drop(columns=["cbwd"])
pollution.head()
year month day hour pm2.5 DEWP TEMP PRES Iws Is Ir NE NW SE cv
No
1 2010 1 1 0 NaN -21 -11.0 1021.0 1.79 0 0 0.0 1.0 0.0 0.0
2 2010 1 1 1 NaN -21 -12.0 1020.0 4.92 0 0 0.0 1.0 0.0 0.0
3 2010 1 1 2 NaN -21 -11.0 1019.0 6.71 0 0 0.0 1.0 0.0 0.0
4 2010 1 1 3 NaN -21 -14.0 1019.0 9.84 0 0 0.0 1.0 0.0 0.0
5 2010 1 1 4 NaN -20 -12.0 1018.0 12.97 0 0 0.0 1.0 0.0 0.0
# Replace NaN with 0 in the pm2.5 column
pollution["pm2.5"] = pollution["pm2.5"].fillna(0)
pollution.head()
year month day hour pm2.5 DEWP TEMP PRES Iws Is Ir NE NW SE cv
No
1 2010 1 1 0 0.0 -21 -11.0 1021.0 1.79 0 0 0.0 1.0 0.0 0.0
2 2010 1 1 1 0.0 -21 -12.0 1020.0 4.92 0 0 0.0 1.0 0.0 0.0
3 2010 1 1 2 0.0 -21 -11.0 1019.0 6.71 0 0 0.0 1.0 0.0 0.0
4 2010 1 1 3 0.0 -21 -14.0 1019.0 9.84 0 0 0.0 1.0 0.0 0.0
5 2010 1 1 4 0.0 -20 -12.0 1018.0 12.97 0 0 0.0 1.0 0.0 0.0
# PCA of pollution data
from hoggorm.pca import nipalsPCA as PCA
pca = PCA(pollution.iloc[:,4:].values, numComp=4, Xstand=True)
# Make a 2D histogram of the X_scores (too many points for a scatter plot)
plt.figure(figsize=(4,4))
plt.hist2d(pca.X_scores()[:,0], pca.X_scores()[:,1], bins=200)
plt.xlabel("PC 1")
plt.ylabel("PC 2")
plt.show()
../../_images/ece1235b3bbdde6b1e70e98414306870def64da6bcb090d23c4ac4d493318418.png
# Loading plot
from hoggormplot import loadings
loadings(pca, comp=[1,2], XvarNames=pollution.columns[4:].tolist())
plt.show()
../../_images/fcefffe96e2477fd0e941e4526d374d6b98fc795f00bc120927b6a0e45142a38.png
# Make a 2D histogram of the X_scores (too many points for a scatter plot)
plt.figure(figsize=(4,4))
plt.hist2d(pca.X_scores()[:,0], pca.X_scores()[:,1], bins=200)
plt.xlabel("PC 1")
plt.ylabel("PC 2")
labs = pollution.columns[4:].tolist()
# Add an axis cross in gray using axhline and axvline
plt.axhline(0, color="gray")
plt.axvline(0, color="gray")
# Add the loadings as text (labs) in white on top of the histogram, scale to the same range as the histogram
for i in range(len(labs)):
    plt.text(pca.X_loadings()[i,0]*4, pca.X_loadings()[i,1]*4, labs[i], color="white")
plt.show()
../../_images/b68bfd1bc6d764547689dbf10666cb006dda903af320c610848bf16ce1d0f856.png
# Plot the 3rd and 4th components
loadings(pca, comp=[3,4], XvarNames=pollution.columns[4:].tolist())
plt.show()
../../_images/b9ac316606980bfcf75a5562f7d8c31c31ac918e6e3f44cc32f90b941f3175b3.png
